RoTechBlower

RoTechBlower
Request product
Item Description
1.1 Outer rotor
1.2 Inner rotor
1.3 Can / pressure barrier
2 Motor
3 Bearing cartridge
4 Impeller
5 Pressure housing

RoTechBlower

Features

  • Hermetically sealed
  • High pressure capability
  • Low heat generation through high efficiency magnetic coupling
  • Long life and high reliablility

Advantages

Magnetic coupled blowers for gas circulation in closed systems requiring high flows and differential pressures. The whole unit includes motor, high efficient magnetic coupling, regenerative or centrifugal impeller, impeller housing and permanently lubricated roller bearings.

Operating range

Design pressure:
1 ... 1,000 bar (15 ... 14,500 PSI)
Design temperature: max. 460 °C (860 °F)
Speed range: 750 ... 7,000 min-1
Gas flow: 0 ... 9,000 m³/h
Pressure ratio: 1:3.3

Functional description

The Magnetic coupling allows power to be transfered from the electric motor to the impeller without mechanical contact. The impeller shaft is held by roller bearings in the impeller housing. The gas enters the inlet of the blower, and is then transfered and pressurized by the rotating impeller to the outlet.

Notes

Options:
  • Horizontal design
  • Vertical design
  • Centrifugal impeller
  • Regenerative impeller
  • Single stage
  • Two stage, in serial
  • Two stage parallel
  • Dry running roller bearings
  • Noise reduction cover


Product variants

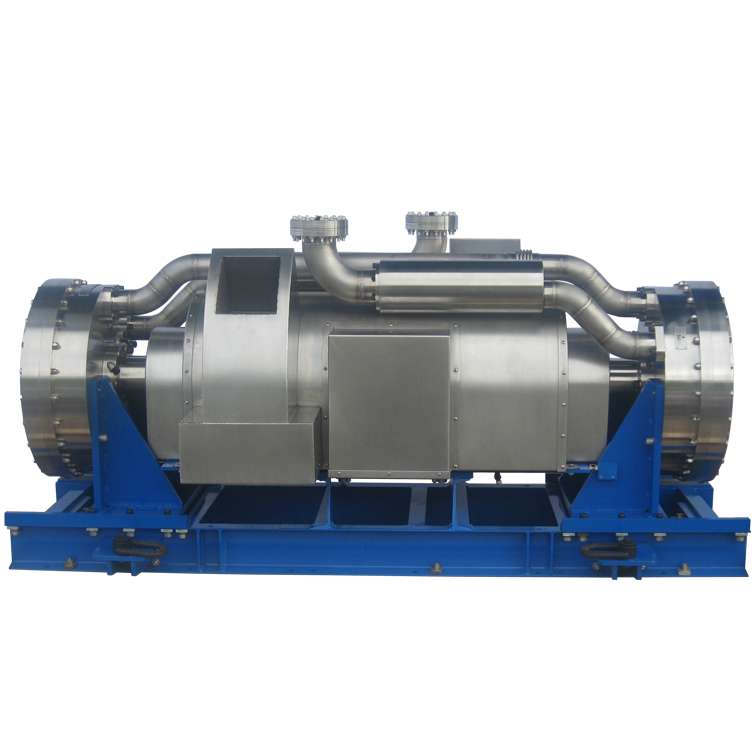

RoTechBlower - two stage variant
